Cleanroom Pass Box

Secure Cleanroom Pass Box Solution for Contamination-Free Transfer

Cleanroom Pass Box systems are essential for contamination-free material transfer between rooms of varying cleanliness levels. Designed to minimize cross-contamination and reduce unnecessary personnel movement, they help maintain sterile conditions in pharmaceutical, biotech, food processing, and electronics cleanrooms.

Dyna offers both Static and Dynamic Cleanroom Pass Boxes tailored to specific cleanroom transfer requirements. Static Pass Boxes are ideal for transfers between similarly classified areas where airflow control is not critical. In contrast, Dynamic Pass Boxes feature HEPA filters and built-in air circulation to purge and decontaminate items during transfer between zones of different cleanliness grades.

Built with GMP-compliant stainless steel, Dyna’s Cleanroom Pass Boxes come equipped with electromagnetic door interlocks, UV sterilization, and optional pressure gauges—delivering reliable performance, enhanced safety, and full regulatory compliance.

Cleanroom Pass Box Key Features:

Interlocked Doors – Mechanical or electronic door interlock system that prevents simultaneous door opening for contamination control and avoiding pressure loss.
HEPA Filtration (Dynamic Models) – ISO Class 5 clean air for decontamination.
GMP-Grade SS Construction – Smooth, easy-to-clean interior and exterior.
UV Germicidal Light (Optional) – For added microbial decontamination.
Custom Sizes & Configurations – Wall-mounted or floor-standing options available.

Cleanroom Pass Box Applications:

Pharmaceutical Production – Transfers vials, syringes, and raw materials between classified areas.
Microbiology & Biotech Labs – Safe movement of culture media, samples, and consumables.
Hospitals & Clean Surgery Zones – Minimizes external contact in material movement.
Cosmetics & Food Processing Units – Prevents contamination during packaging and mixing processes.
Semiconductor Manufacturing – Controls particle introduction while transferring components.
Chemical & Nutraceuticals – Transfers hazardous or sterile materials safely across rooms.

Why Choose Dyna Cleanroom Pass Box?

Built with cleanroom-compatible materials and precision interlocking systems.
Available in both static and dynamic models for diverse cleanroom needs.
Fully customizable to your wall size, load height, and filtration requirements.
Optional features like UV lamps, differential pressure monitoring, and viewing windows.
Designed and manufactured in compliance with ISO 14644, GMP, and FDA guidelines.

Cleanroom Pass Box Product Variants:

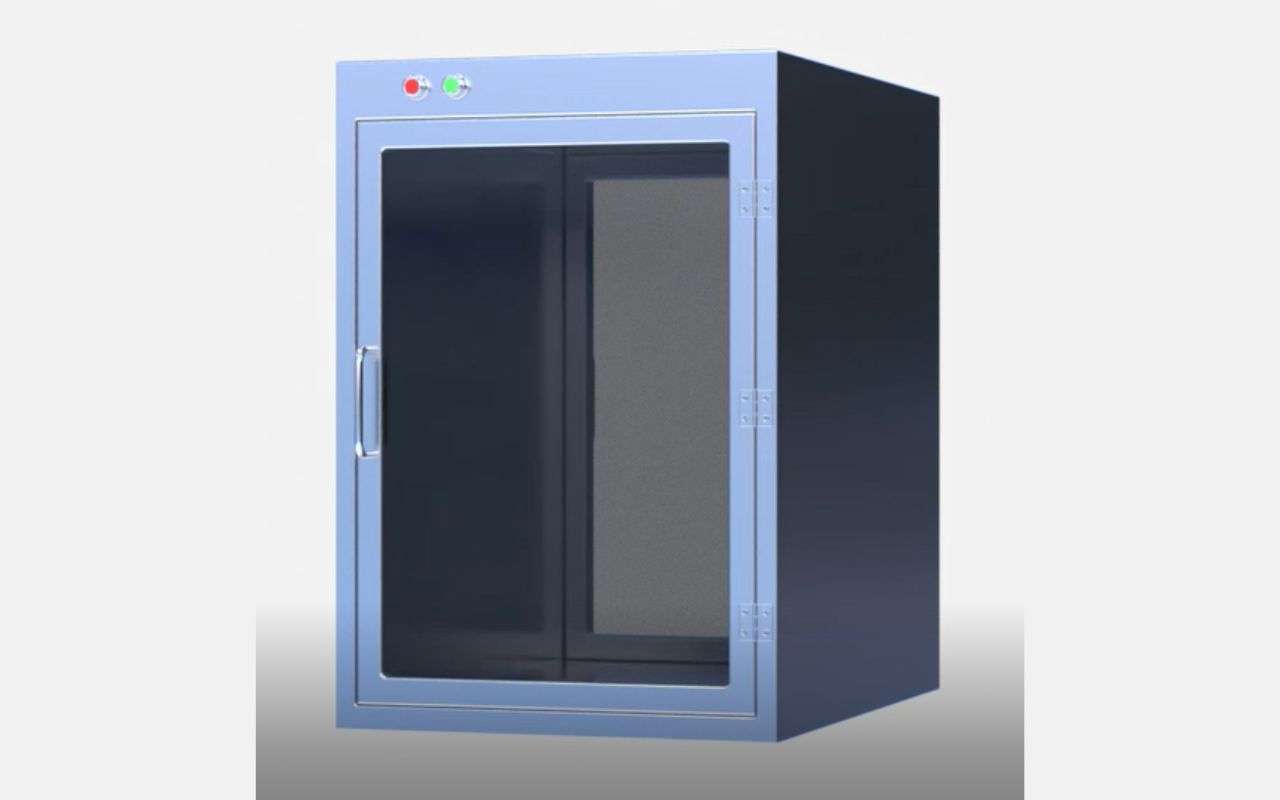

Static Pass Boxes

Static Pass Box

No internal air movement
· Ideal for transfer between two clean rooms of equivalent classifications.
Available with UV light and acrylic viewing window

Dynamic Pass Boxes

Dynamic Pass Box

HEPA-filtered air circulation for ISO Class 5 internal conditions
Blower and filtration system remove airborne particles during transfer
Suitable for movement between two clean rooms of different classifications.

Frequently Asked Questions (FAQs)

What is the difference between Static and Dynamic Pass Boxes?

Static Pass Boxes have no internal airflow, used for transfer between clean rooms of equivalent. Dynamic Pass Boxes have HEPA-filtered recirculating air for decontamination and movement between two clean rooms of different classifications.

Can I install a pass box in any wall partition?

Yes. Dyna offers wall-mounted, floor-standing, and customised options based on your cleanroom layout.

How do the interlocking doors work?

They are mechanically or electronically interlocked, ensuring that only one door can open at a time to prevent cross-contamination and pressure loss.

Is maintenance required for Dynamic Pass Boxes?

Yes. HEPA filters and blowers require routine inspection and replacement based on usage.

Need a reliable solution for contamination-free material transfer?

Choose Dyna’s Cleanroom Pass Boxes – engineered for safety, efficiency,
and regulatory compliance in sterile environments.
